An Engineer’s Guide to ASME BPE: What Do SF1 Through SF6 Really Mean?

Let’s break down what SF1 through SF6 really mean from an engineering perspective.

First，the ASME BPE standard (BioProcessing Equipment) uses these designations to classify components based on their intended use in a fluid pathway and the level of quality assurance and documentation provided by the manufacturer.

It is NOT a material specification. A 316L stainless steel fitting could be made to an SF1, SF3, or SF5 level. The difference lies in how it was made, inspected, and documented.

SF1 – Commercial / Industrial Grade

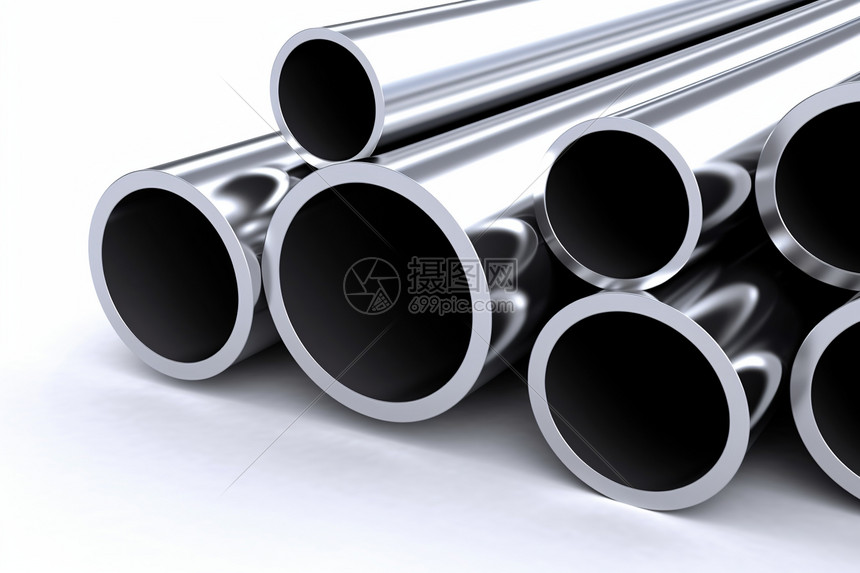

· The Reality: This is standard, off-the-shelf tubing, pipe, and fittings. It has no special certifications and is not intended for use in direct product contact in a regulated biopharma environment.

· When to Use It: For utility lines that are not in product contact (e.g., plant steam, cooling water, instrument air support frames). Using SF1 in a product or CIP/SIP (Clean-in-Place / Steam-in-Place) line is a major compliance risk.

SF2 – Semi-Finished

· The Reality: This is a rarely used category. The components are manufactured from raw material that meets BPE chemistry requirements, but the final product itself is not fully certified. Think of it as a step above SF1 but not fully qualified.

· When to Use It: It’s a “gray area.” Generally avoided for critical systems. Might be found in some non-critical support systems where material purity is a minor concern but full BPE certification isn’t justified.

SF3 – Standard BPE Product

· The Reality: This is the workhorse of the bioprocessing industry. If a drawing calls for a “BPE fitting,” it is almost always assuming SF3. This is the minimum acceptable grade for any product contact or CIP/SIP system.

· When to Use It: Everywhere in the product path. Fermenters, bioreactors, chromatography skids, hold tanks, and all associated piping for product, buffer, and CIP/SIP fluids.

SF4 – High-Pressure BPE Product

· The Reality: This is essentially SF3 that is rated for a higher pressure class. All the quality and documentation requirements of SF3 apply.

 When to Use It: In high-pressure systems, such as those found in certain filtration skids, high-pressure chromatography, or any application where the design pressure exceeds the standard rating for SF3 components.

SF5 – Bioprocessing Receiving Inspection

· The Reality: This is an SF3 component that the end-user (you, the biopharma company) has individually inspected and accepted. The manufacturer provides the component and its certs, but you perform your own additional, rigorous inspection.

· When to Use It: For extremely critical applications where failure is not an option (e.g., final product formulation lines, fill lines). This adds a significant layer of cost and time but provides the highest confidence in the component’s quality.

SF6 – Vendor Sourced and Certified

· The Reality: This is a “black box” certification. You are trusting the component manufacturer (the vendor) to perform the same level of rigorous inspection that you would do for SF5. The vendor provides a certificate stating the component meets all SF5 requirements.

· When to Use It: When you need SF5-level quality assurance but lack the in-house inspection capability or want to streamline the supply chain. It requires a high degree of trust and a solid Quality Agreement with the vendor.

By understanding these categories, you can make informed, cost-effective, and compliant decisions for your bioprocessing system designs.
